Urology Lifter (short version)
Product highlights
- Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.
- Back-friendly handling and height adjustment thanks to electrical drive and comfortable foot switch
- Mobile use through a long battery life
- No sinking during power cut
- All plastic parts are lightfast
- Stable base plate made of galvanized steel (layer thickness 10 µm)
- Stainless steel tubes according to DIN EN 10217-7
- Material ultrasonic and eddy current tested (according to EN 10246-9/3)
- The integrated pull-out limiter prevents the adjustable tubes from separating
- The height is adjusted using a battery-operated electric motor with self-locking spindle
- Foot switch system according to EN 60601-1
- Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
- High security through turn safety pole construction
- No lowering in case of power failure
- No risk of tripping
- The motor is protected by a safety housing

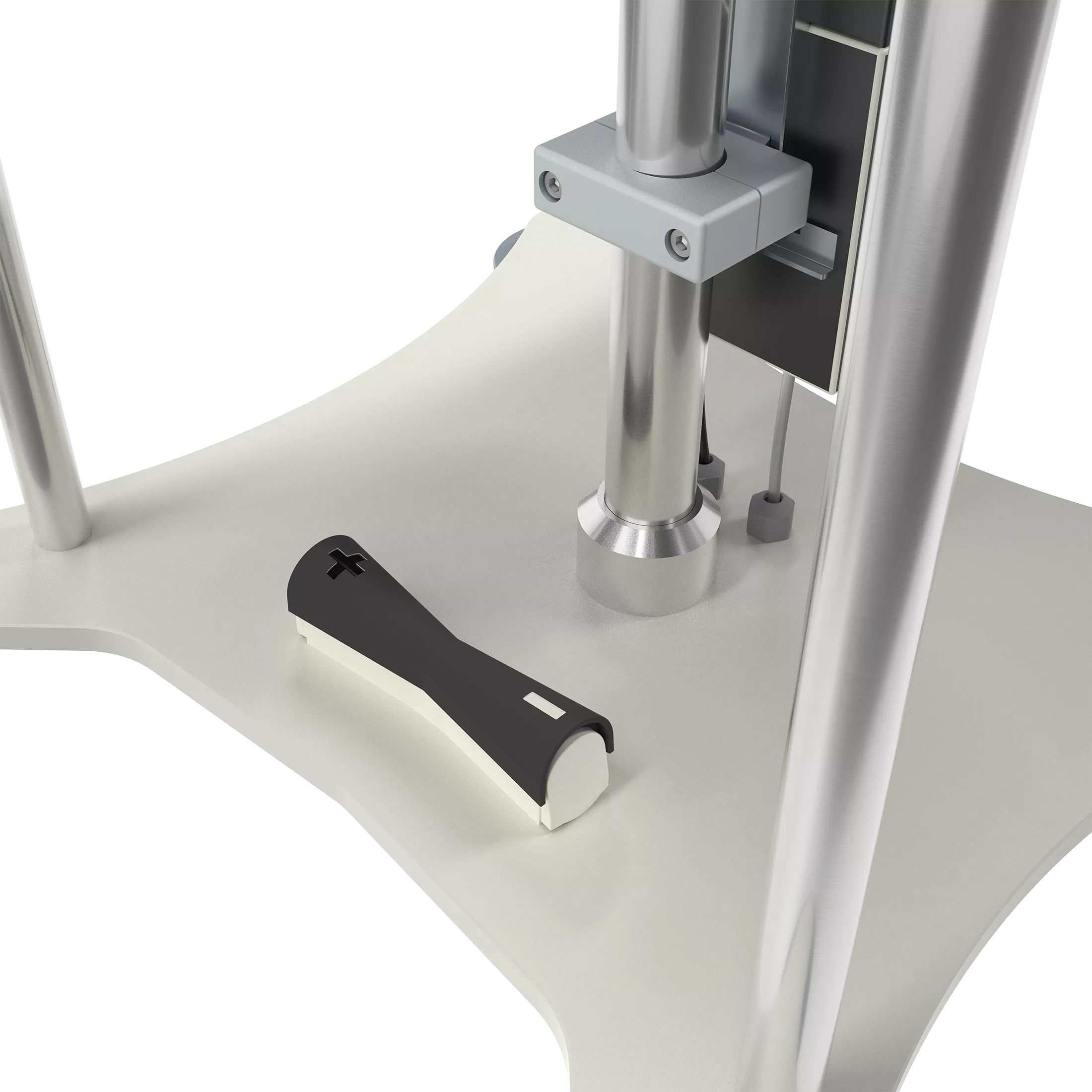

- Convenient height adjustment using a foot switch on the footplate
- Generous cut-out allows for easy operation of the footswitch
- Long battery life allows use in different places
- Easy to move thanks to the extended push handle with large grip surface
- Enables back-friendly setting down of rinsing solutions
I-U02238
Urology Lifter (short version)
with electrical height adjustment
Field of application
|
Urology |
| Material | Stainless steel |
| Safety class | II |

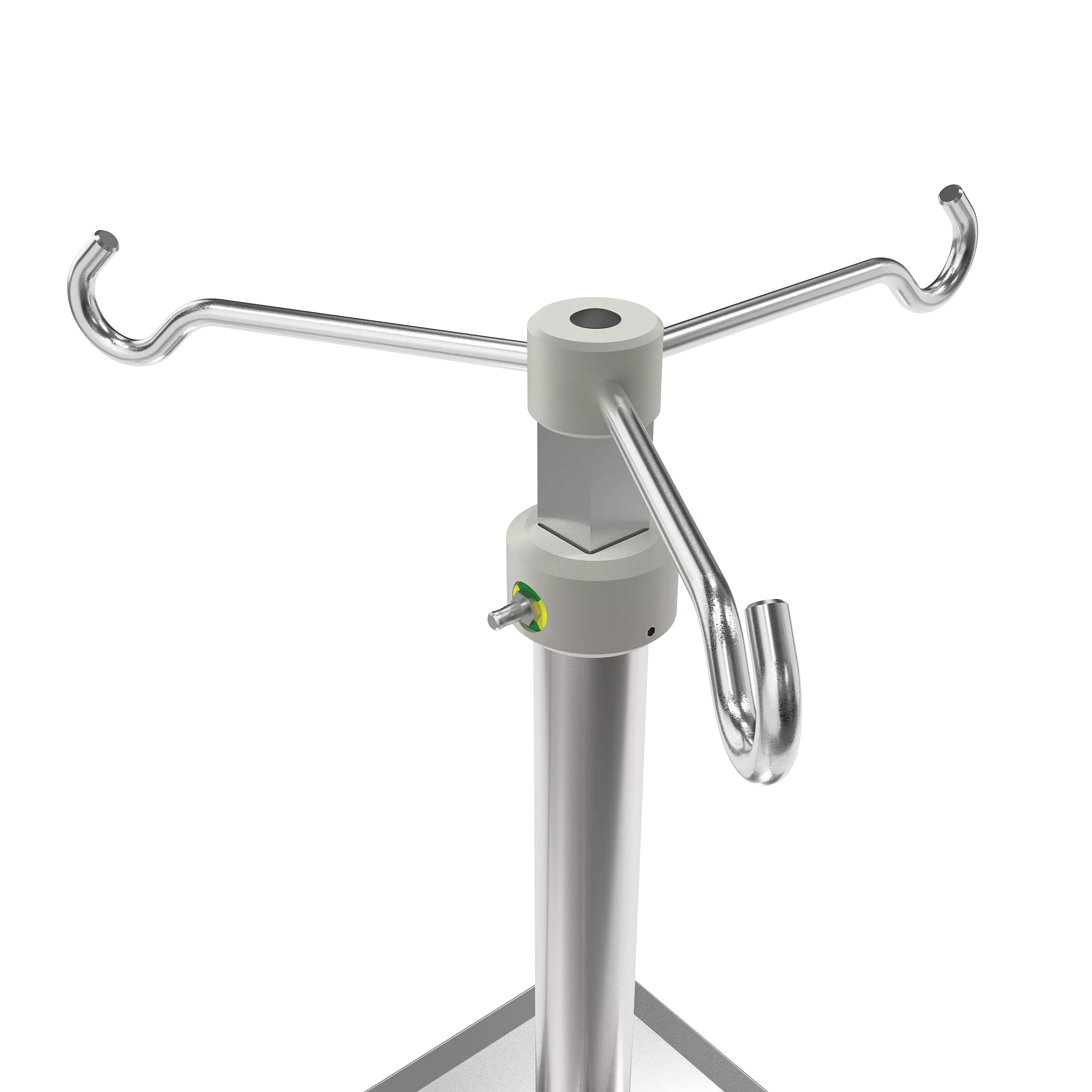

| Number of hooks | 3 |
| Arrangement of the hooks | 120° to each other |
| Type of height adjustment | Electrical by foot switch |
| Maximum length/height | 2.160 mm |
| Minimum length/height | 1.275 mm |
| Operation time | appr. 19 |
| Inner tube diameter | Ø 25 mm |
| Center tube (Ø in mm) | 38 (Ø in mm) |
| Base diameter | 550 x 550 mm |
|

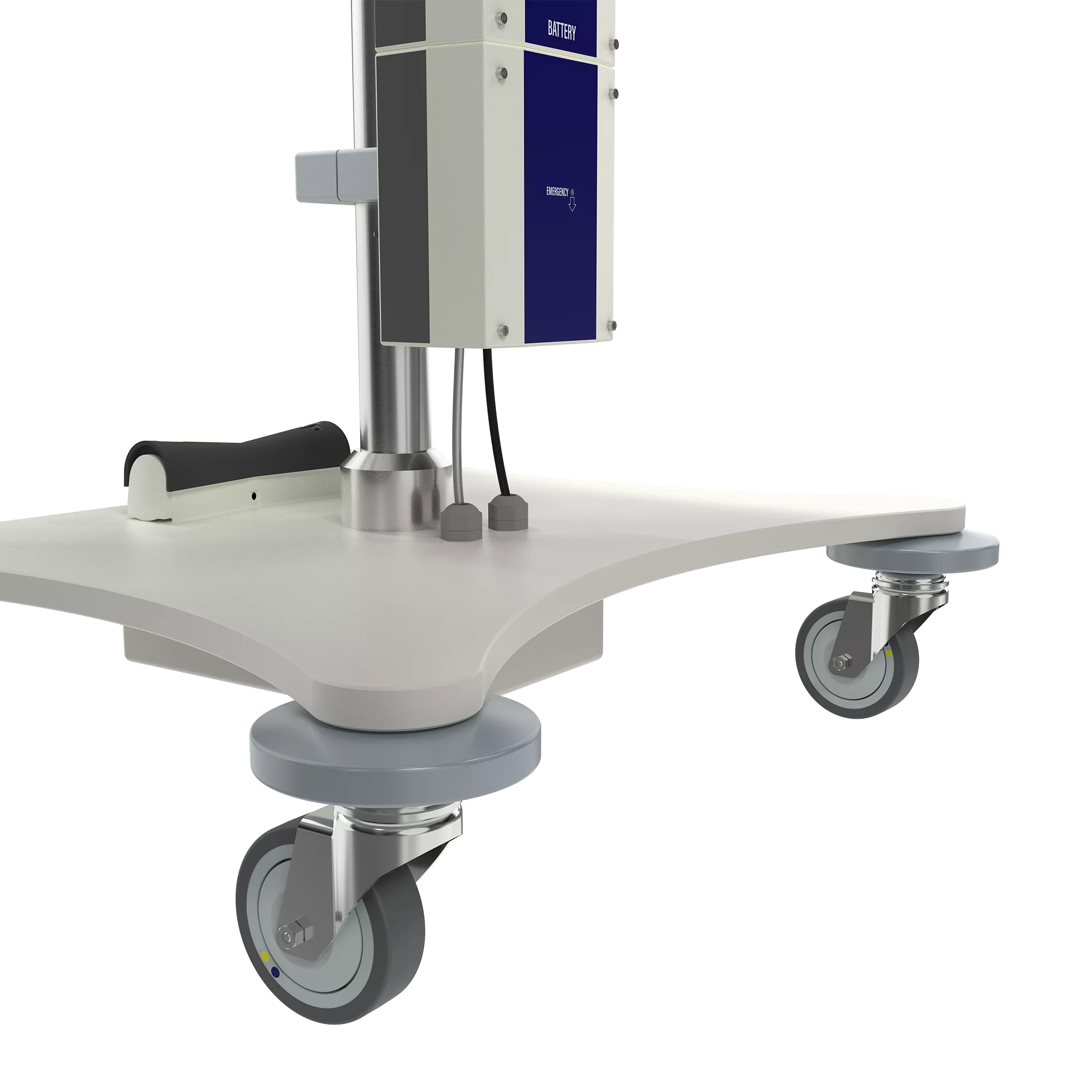

Castors
|
Stainless steel apparatus castors |
| Castor diameter | Ø 75 mm |
| Number of castors | 4 with brakes and elect. conductivity |
| Wall charger included | Yes |
| Total load capacity (kg) | 30 |
| Load capacity per system (kg) | 30 |
| Load capacity per hook (kg) | 10 |
Packaging dimensions
| Packaging unit: Unit |
| Width Box1 | 0,60 m |
| Height Box1 | 1,48 m |
| Length Box1 | 0,80 m |
| Weight Box1 | 45,00 kg |
