Series 5 - Mobile examination lamp
L511130A
Series 5 - Mobile examination lamp

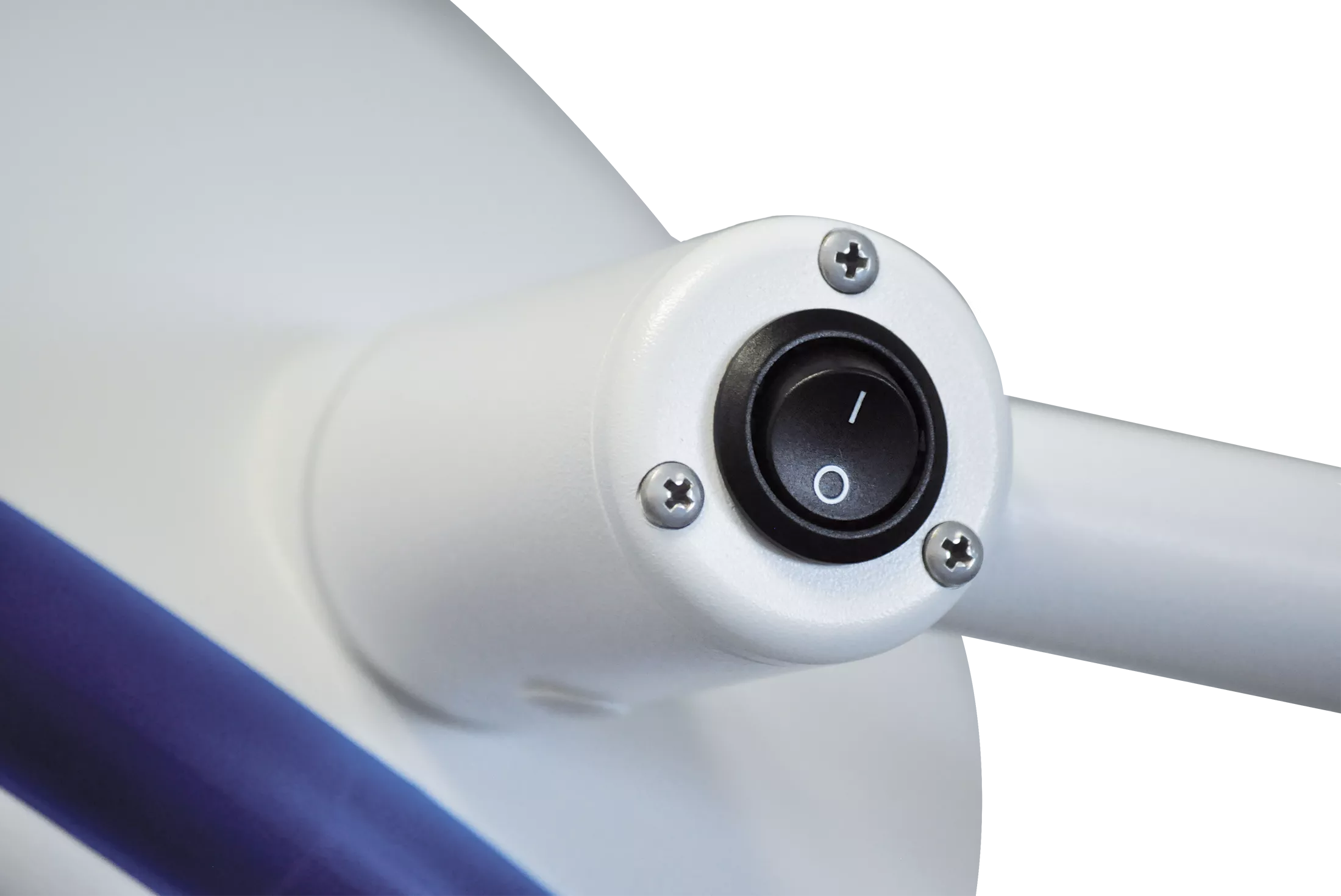

with switch and OSRAM LED
| For attachement to | Pole with roller base |
| Colour of lamp | White |
| Light source | 24 V / 27 W |
| Light output | 60,000 lux / 1,000 mm |
| Luminous flux (lm) | 720 lm |
| Light field diameter D10 | approx. 170 at 1,000 |
| Light colour | approx. 4,500 K |
| Colour rendering index | Type 94 |
| Life expectancy | > 50,000 h (light source) |
| Protection class | IP 20 |
| Safety class | II |
| Electrical mains | AC 120 - 240 V, 50 - 60 Hz |
| Total power output | 35 W |
| Red-colouring index R9 | > 97 |
| Skin rendering index R13 | > 98 |
| Luminous efficiency | 31 lm / W |
| Electrical rating after | DIN VDE 0750 T1 |
Height adjustment
|
approx. 1,000 |
| Swivel radius | approx. 950 |
|
Castors
|
Mono castors |
| Castor diameter | Ø 80 mm |
| Number of castors | 5 with brakes and elect. conductivity |
| Handle | sterilisable |
| Operating mode | continuous use |
Packaging dimensions
| Packaging unit: Unit |
| Width Box1 | 0,49 m |
| Height Box1 | 0,45 m |
| Length Box1 | 1,20 m |
| Weight Box1 | 11,00 kg |
| Width Box2 | 0,16 m |
| Height Box2 | 0,43 m |
| Length Box2 | 0,65 m |
| Weight Box2 | 8,00 kg |
