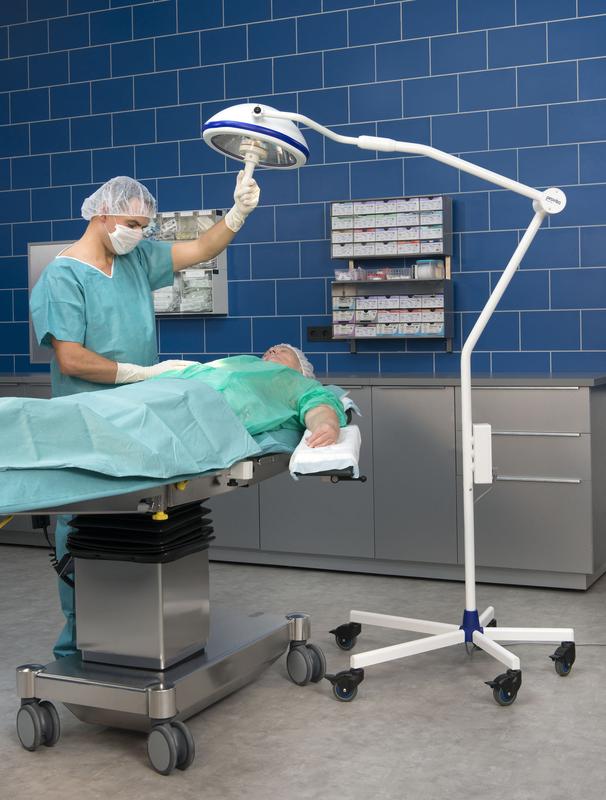

Series 5 - Mobile examination lamp

Product highlights

Energy efficient modern and economical LED technology

Advantages

light intensity, non-reflective illumination of the work field to optimize procedures during treatment and to support the examining doctor
homogeneous light field through an optimized light steering - excellent illumination depth, ideal colour rendering and colour temperature

Technology

braking effect meets the requirements from ICE 60601
load capacity of the casters according to EN 12528
All plastic parts are lightfast
central light unit and high gloss metal facetted reflector generate a high level shadowless lighting
light source with overheat protection
high value colour rendering index and optimised colour temperature
sturdy articulated arms made from metall with high grade structured powder coating with highest yellowing resistance
casters with non-marking thermoplastic tread and treadguard
multiple mixture of light

Economy

high life expectancy of the light source
low maintenance effort
no standby power consumption thanks to additional main power switch ath the supply housing

Safety

Application

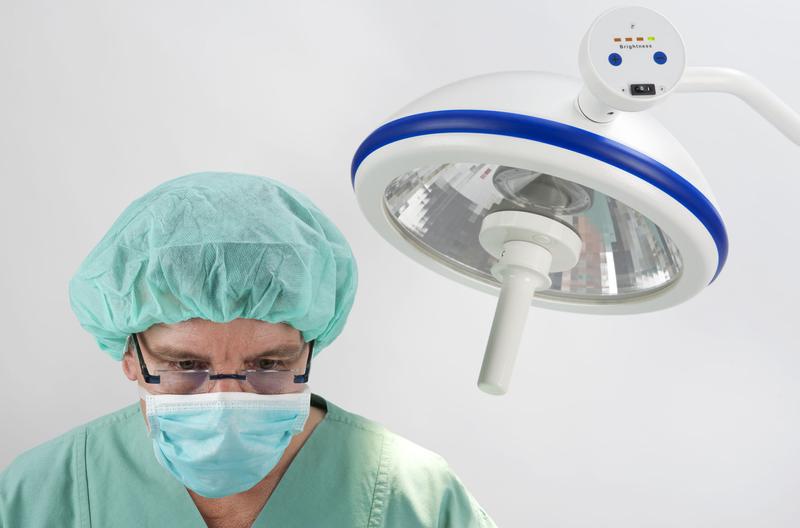

lighthead can easily be rotated and pivoted
true-to-position, low-friction cardan joint allows a comfortable positioning of the lamp
ergonomic weight balancing provides optimal mobility at highest stability
excellent hygienic characteristics through seamlessly covered design
adjustable light intensity by four step dimming function

L511125A

with UPS (Uninterruptible Power Supply)

Battery capacity	6000 mAh; Backup time = 3.5 h at dimmer level 3
For attachement to	Pole with roller base
Colour of lamp	White
Light source	24 V / 27 W
Light output	~ 80,000 lux / 1,000 mm
Luminous flux (lm)	840 lm
Light field diameter D10	approx. 160 at 1,000
Light colour	approx. 4,500 K
Colour rendering index	Type 94
Life expectancy	> 50,000 h (light source)
Protection class	IP 20
Safety class	II
Electrical mains	AC 120 - 240 V, 50 - 60 Hz
Total power output	35 W
Red-colouring index R9	> 97
Skin rendering index R13	> 98
Luminous efficiency	31 lm / W
Diming levels	50 % / 65 % / 85 %
Electrical rating after	DIN VDE 0750 T1
Height adjustment	approx. 1,000
Safety	with UPS (Uninterruptible Power Supply)
Swivel radius	approx. 950
Castors	Mono castors
Castor diameter	Ø 80 mm
Number of castors	5 with brakes and elect. conductivity
Handle	sterilisable
Operating mode	continuous use
