Lifter incl. Accessories
I-U02235
Lifter incl. Accessories
with hydraulic height adjustment
| Minimal hook height | 1.260 mm |
| Maximum hook height | 2.260 mm |
Field of application
|
Urology |

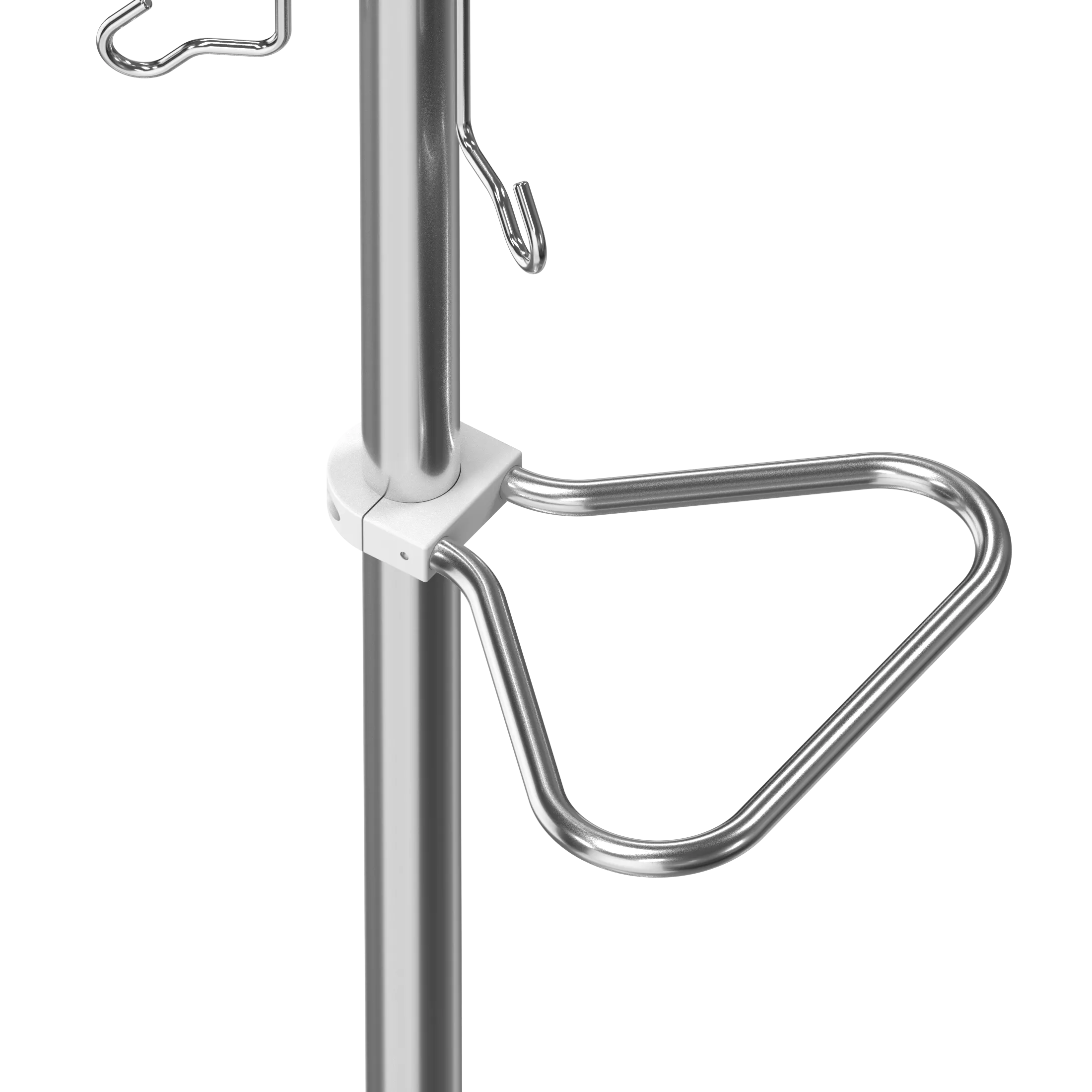

| Including | Push handle and drainage holder |
| Material | Stainless steel |
|

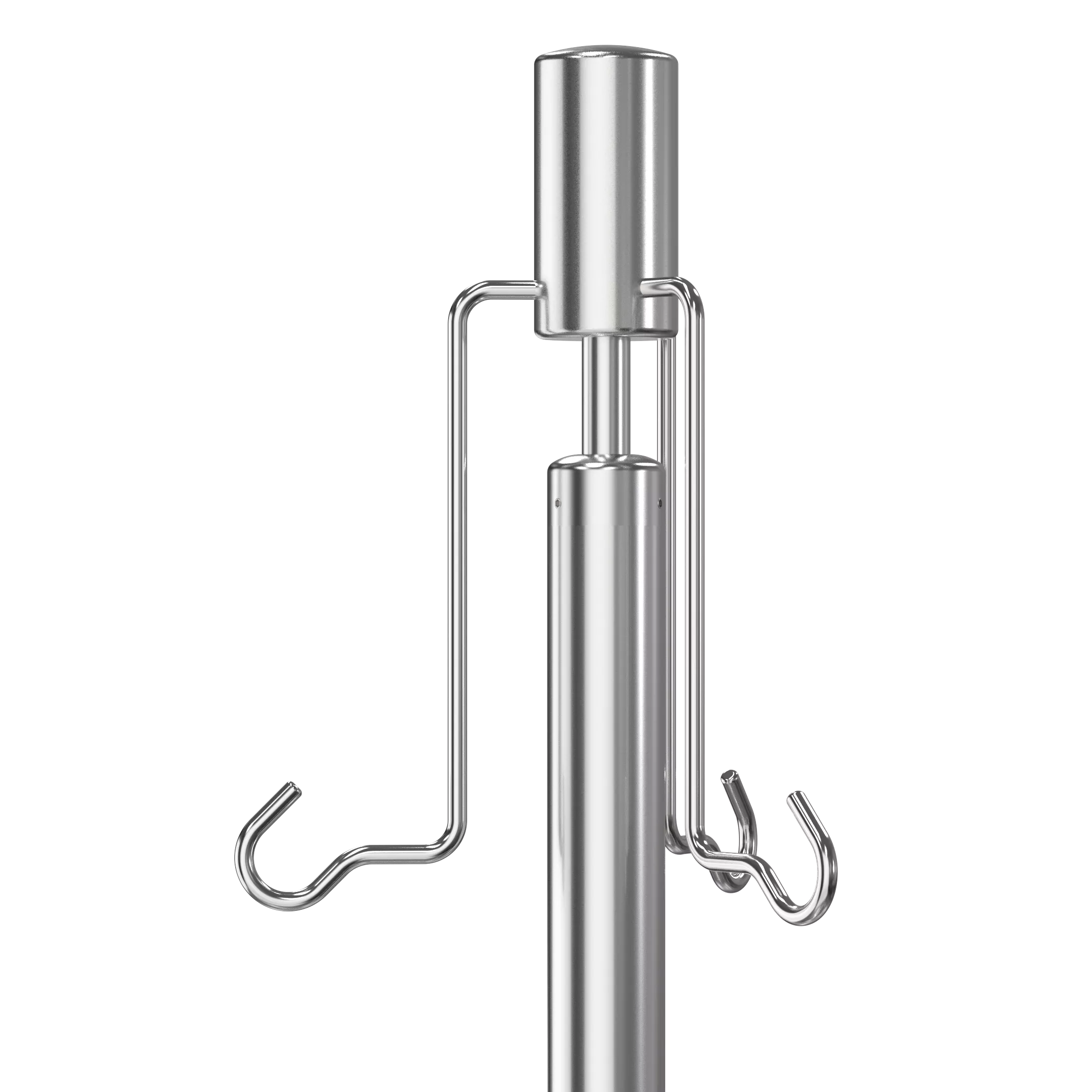

Bottle Holder
|
Stainless steel bottle cross for screwing in |
| Number of hooks | 3 |
| Arrangement of the hooks | 120° to each other |
| Type of height adjustment | Foot pedal |
| Maximum length/height | 2.500 mm |
| Minimum length/height | 1.620 mm |
| Inner tube diameter | Ø 20 mm |
| Outer tube diameter | Ø 48 mm |
| Length of outer tube | 1.300 mm |

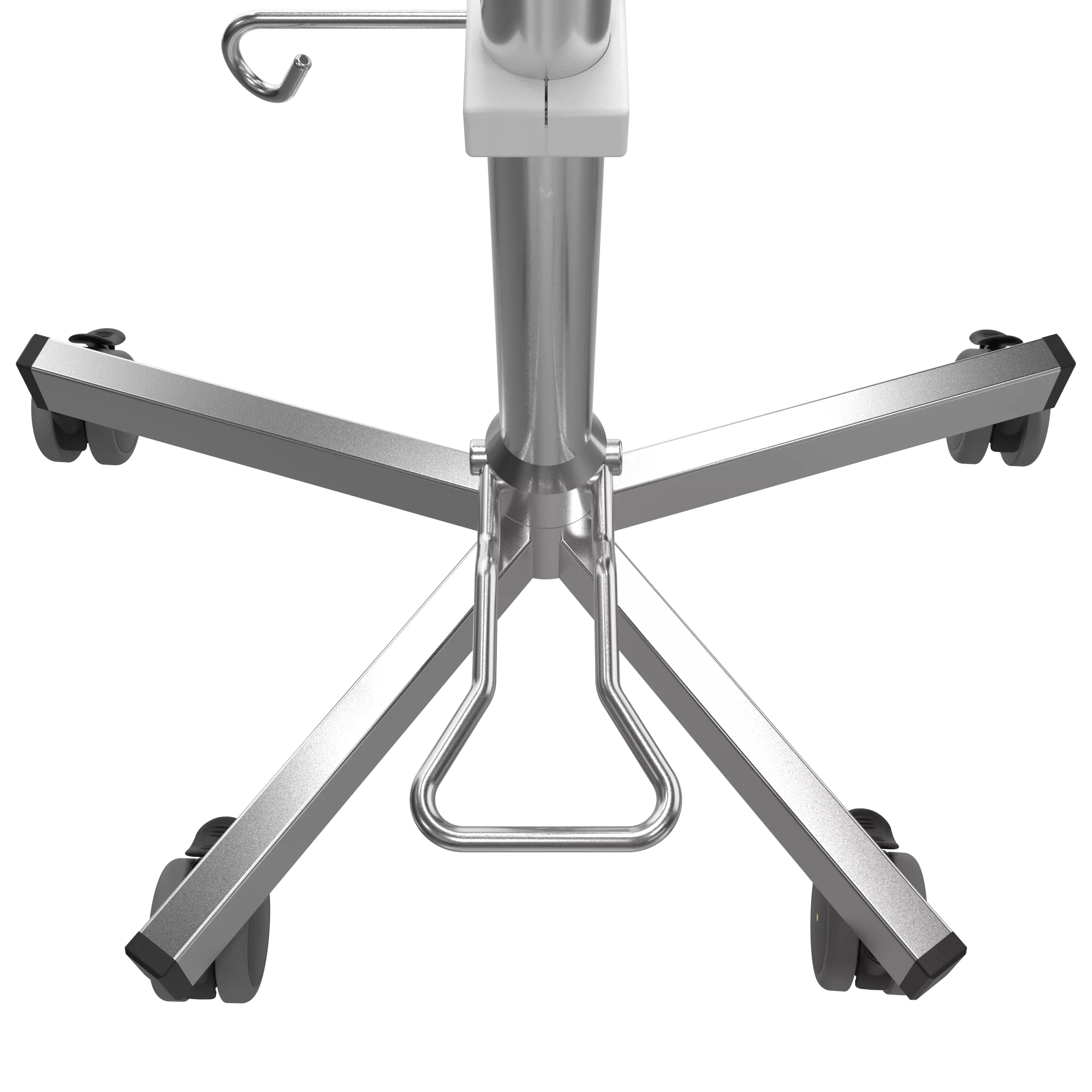

| Base leg profile | 45 x 25 mm |
| Base diameter | Ø 655 mm |
|
Castors
|
Twin castors |
| Castor diameter | Ø 75 mm |
| Number of castors | 5 with brakes and elect. conductivity |
| Total load capacity (kg) | 20 |
| Load capacity per system (kg) | 15 |
| Load capacity per hook (kg) | 5 |
