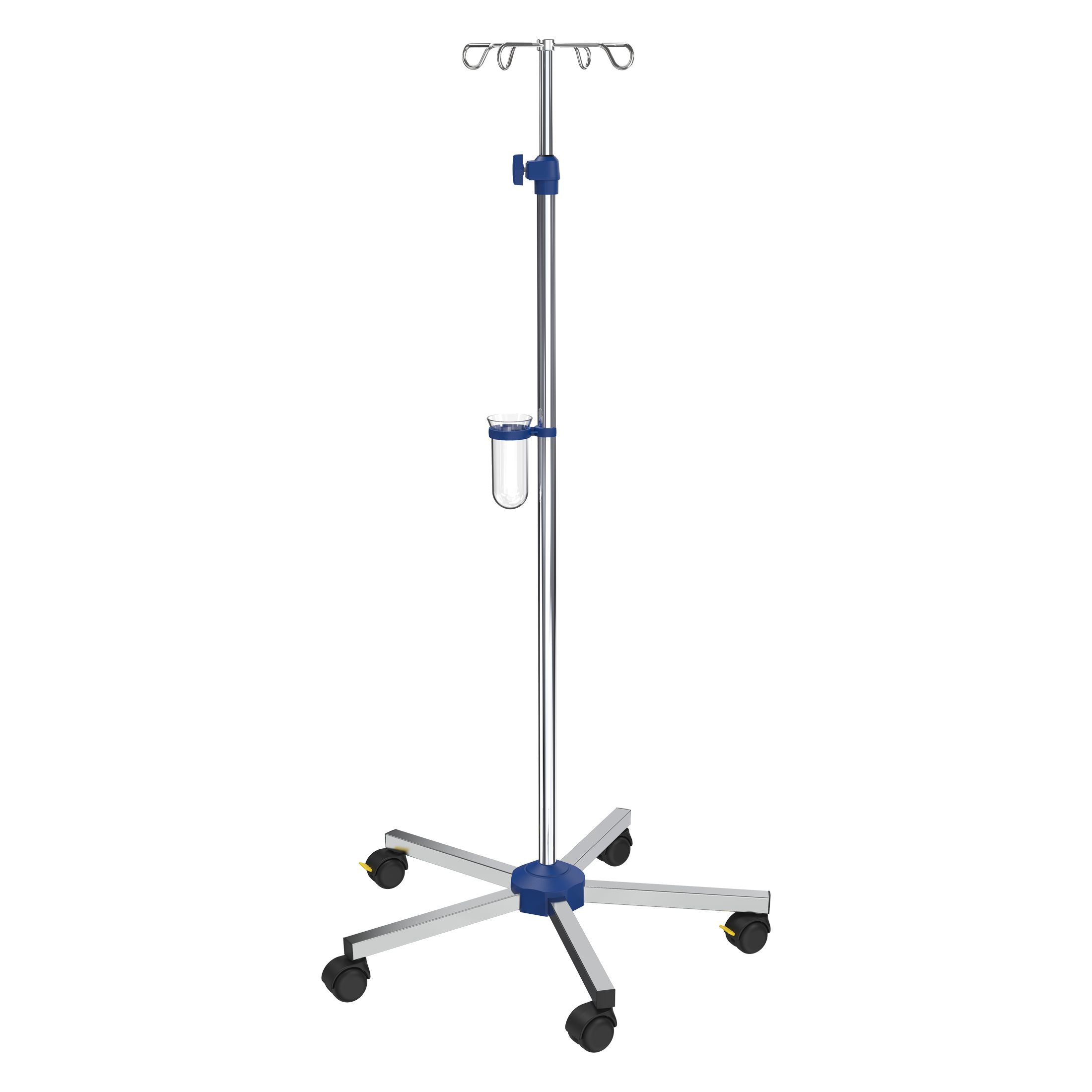

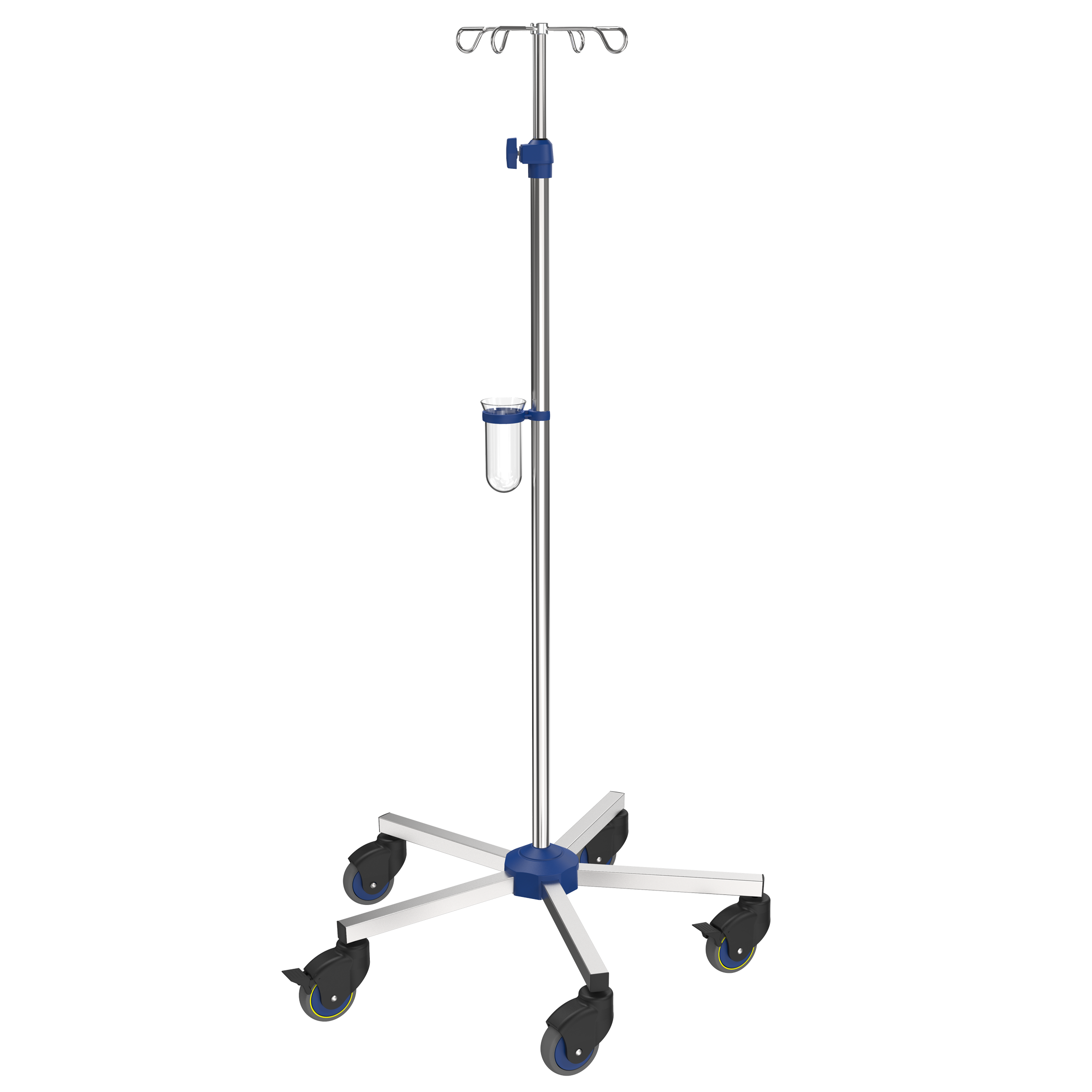

IV-Stand Normal care
Product highlights
- Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.
- Effective infusion care by securely hanging infusion bottles and bags
- Mobile and flexible application possibilities
- All plastic parts are lightfast
- castors with non-marking tread
- Stainless steel tubes according to DIN EN 10217-7
- Material ultrasonic and eddy current tested (according to EN 10246-9/3)
- The integrated pull-out limiter prevents the adjustable tubes from separating
- Safety bottle cross according to DIN ISO 15375
- a sealing cap prevents the IV-pole from hygienical senstive liquids
- Compact packaging allows for low-cost shipping
- The base legs are sealed with plastic plugs (no risk of injury)
- Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
- No risk of injury thanks to the rounded shape of the bottle hooks
- The geometry of the hooks prevents the infusion bottle from falling out
- optimal hygienic characteristics (wipe disinfection)
- very easy and fast assembly through a plug in and out system with only 1 screw connection
- comfortable height adjustment through a screw-height adjustment with an integrated, surface-gently mold clamping element

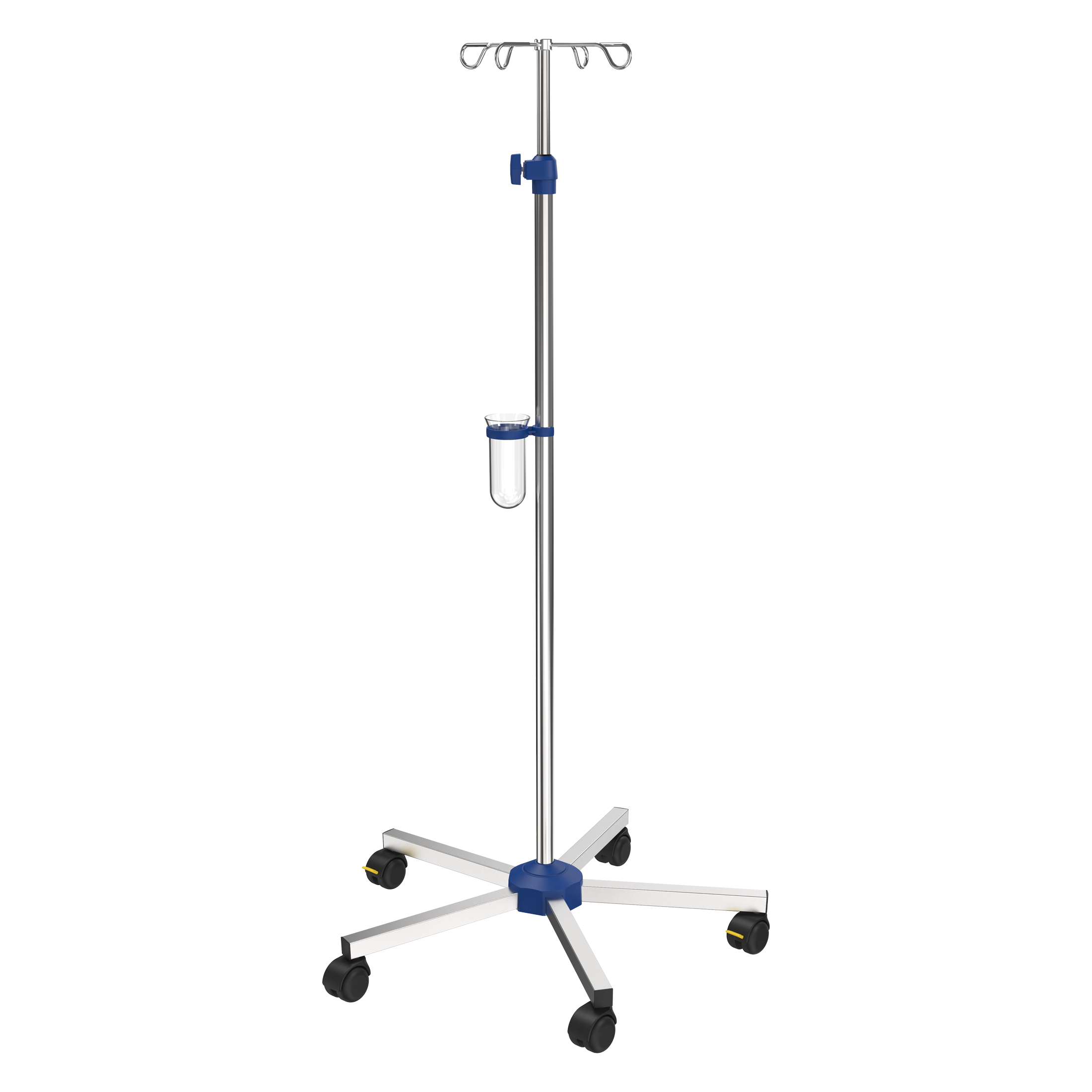

I-N11122
IV-Stand Normal care
Material: stainless steel
Field of application
|
Normal Care |
| Material | Stainless steel |
| Colour of plastic parts | Blue |
|
Bottle Holder
|
Stainless steel bottle cross for screwing in |
| Number of hooks | 4 |
| Arrangement of the hooks | 90° to each other |
| Type of height adjustment | Screw height adjustment |
| Maximum length/height | 2.090 mm ± 10mm |
| Minimum length/height | 1.250 mm ± 10mm |
| Inner tube diameter | Ø 18 mm |
| Outer tube diameter | Ø 25 mm |
| Length of outer tube | 1.000 mm |
| Base leg profile | 25 x 25 mm |
| Base weight | Unweighted |
| Base diameter | Ø 635 mm |
|
Castors
|
Twin castors |
| Castor diameter | Ø 50 mm |
| Number of castors | 5; 2 with brakes and elect. conductivity |
| Drip vessel sterilizable | Yes |
| Total load capacity (kg) | 9.5 |
| Load capacity per system (kg) | 8 |
| Load capacity per hook (kg) | 2 |
Packaging dimensions
| Packaging unit: Pair |
| Width Box1 | 0,19 m |
| Height Box1 | 0,10 m |
| Length Box1 | 1,19 m |
| Weight Box1 | 7,60 kg |
| Packaging unit: Unit |
| Width Box1 | 0,19 m |
| Height Box1 | 0,10 m |
| Length Box1 | 1,19 m |
| Weight Box1 | 4,10 kg |
