Product highlights

Best hygienic properties stainless steel (1.4301)
many different configurations
  • Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.
  • Effective infusion care by securely hanging infusion bottles and bags
  • Mobile and flexible application possibilities
  • All plastic parts are lightfast
  • Stainless steel tubes according to DIN EN 10217-7
  • Material ultrasonic and eddy current tested (according to EN 10246-9/3)
  • The integrated pull-out limiter prevents the adjustable tubes from separating
  • Safety bottle cross according to DIN ISO 15375
  • great running characteristic through high value 80 mm Mono castors
  • a sealing cap prevents the IV-pole from hygienical senstive liquids
  • Compact packaging allows for low-cost shipping
  • The base legs are sealed with plastic plugs (no risk of injury)
  • Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
  • No risk of injury thanks to the rounded shape of the bottle hooks
  • The geometry of the hooks prevents the infusion bottle from falling out
  • optimal hygienic characteristics (wipe disinfection)
  • very easy and fast assembly through a plug in and out system with only 1 screw connection
  • comfortable height adjustment through a screw-height adjustment with an integrated, surface-gently mold clamping element

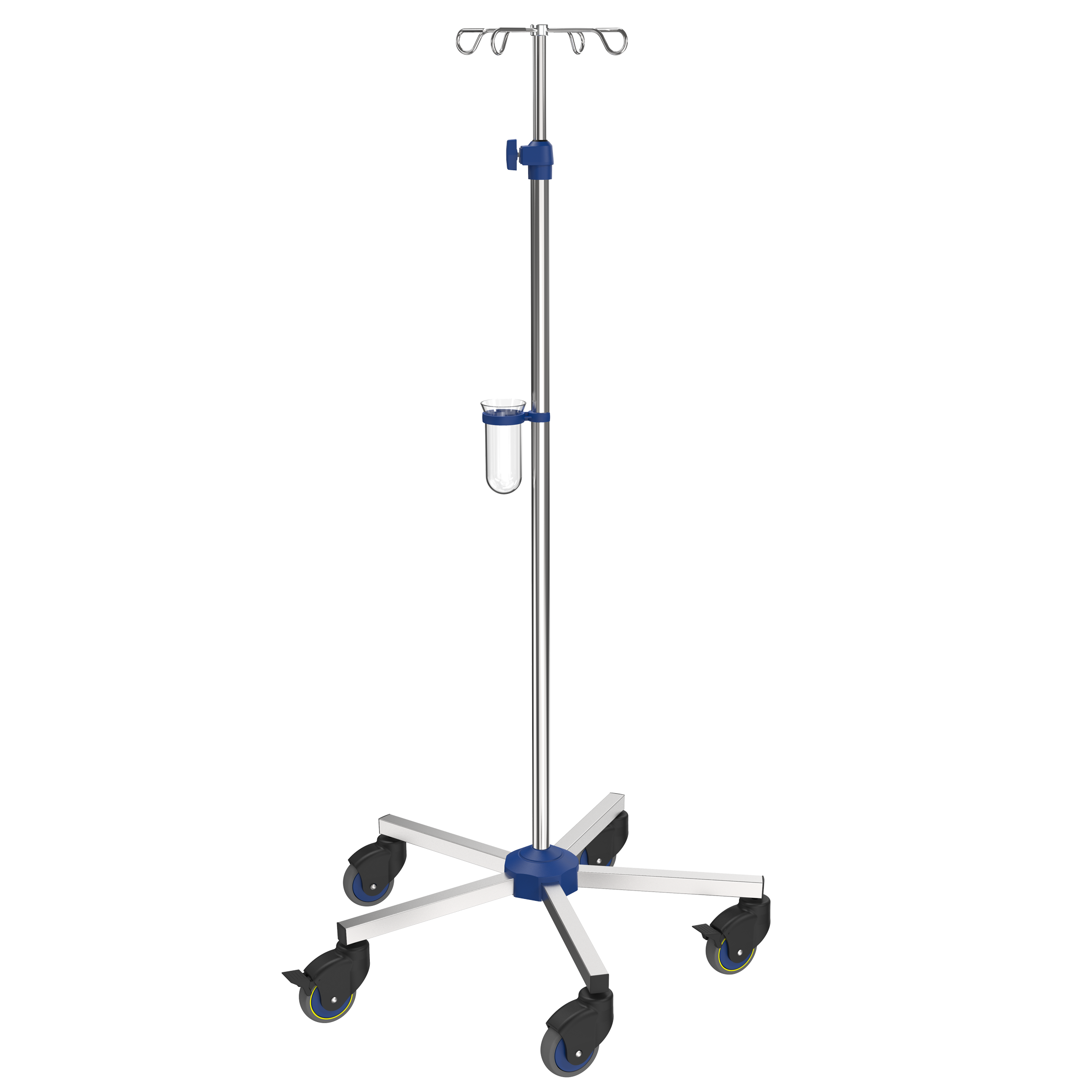

IV-Stand Normal care

Material: stainless steel
Product number: I-N12122
Field of application: Normal Care
Material: Stainless steel
Colour of plastic parts: Blue
Bottle Holder: Stainless steel to screw in, bottle holder
Number of hooks: 4
Arrangement of the hooks: 90° to each other
Type of height adjustment: Screw height adjustment
Maximum length/height: 2,150
Minimum length/height: 1,350
Inner tube diameter: Ø 18 mm
Outer tube diameter: Ø 25 mm
Length of outer tube: 1,000
Base leg profile: 25 x 25
Base weight: Unweighted
Base diameter: Ø 635 mm
Castors: Mono castors
Castor diameter: Ø 80 mm
Number of castors: 5; 2 with brakes and elect. conductivity
Drip vessel sterilizable: Yes
Total load capacity (kg): 9.5
Load capacity per system (kg): 8
Load capacity per hook (kg): 2
Packaging dimensions
Packaging unit: Pair
Width Box1 0,19 m
Height Box1 0,1 m
Length Box1 1,19 m
Weight Box1 7,6 kg
Packaging unit: Unit
Width Box1 0,19 m
Height Box1 0,1 m
Length Box1 1,19 m
Weight Box1 4,1 kg
