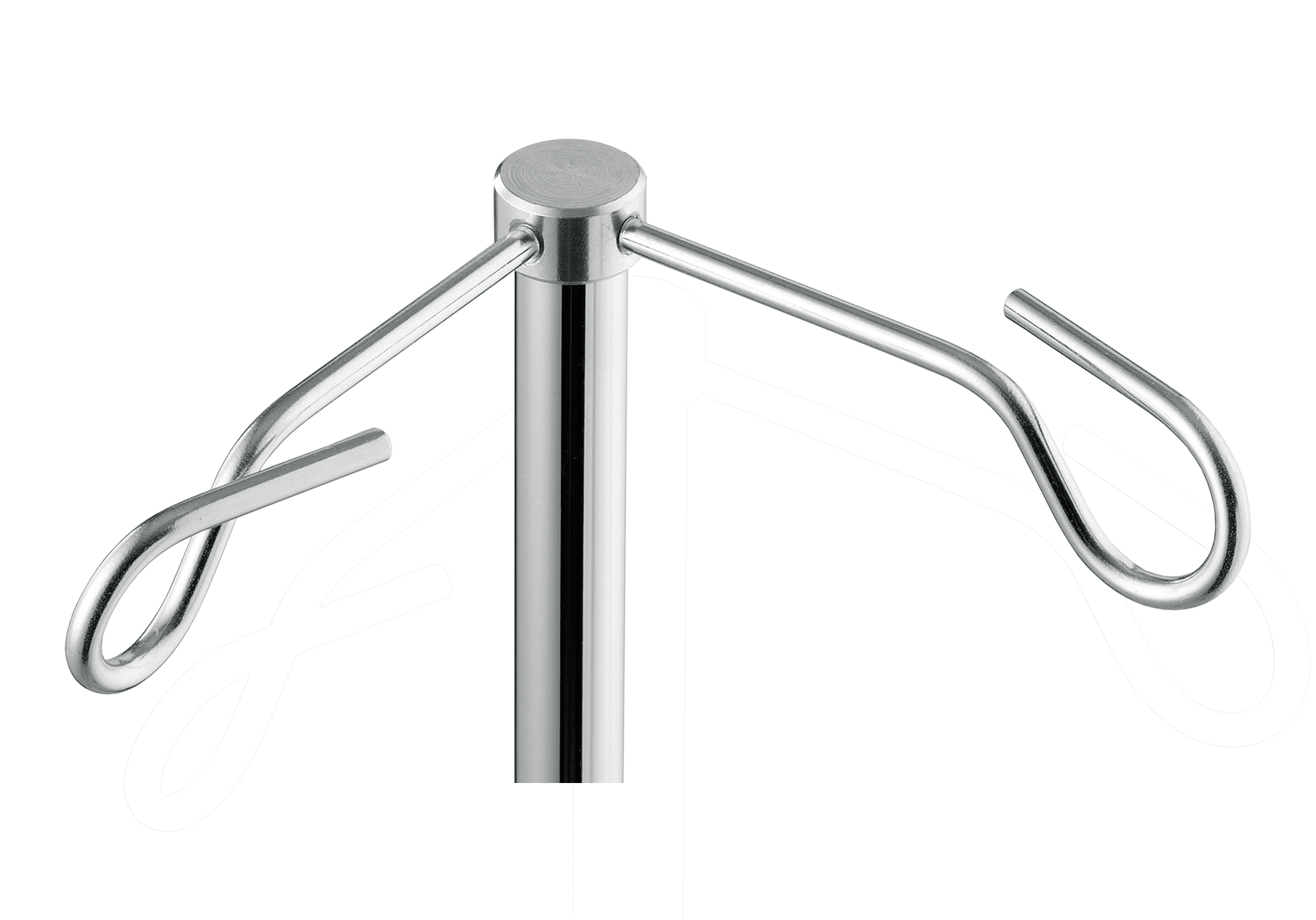

Wall IV- Support "straight"
Product highlights
- Effective infusion care by securely hanging infusion bottles and bags
- safe use above and below light strips and care channels
- space-saving infusion care
- All plastic parts are lightfast
- Stainless steel tubes according to DIN EN 10217-7
- Material ultrasonic and eddy current tested (according to EN 10246-9/3)
- The integrated pull-out limiter prevents the adjustable tubes from separating
- Safety bottle cross according to DIN ISO 15375
- a sealing cap prevents the IV-pole from hygienical senstive liquids
- Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
- No risk of injury thanks to the rounded shape of the bottle hooks
- The geometry of the hooks prevents the infusion bottle from falling out
- comfortable height adjustment through a screw-height adjustment with an integrated, surface-gently mold clamping element
I-WAND02
Wall IV- Support "straight"
Material: stainless steel (polished) / Aluminum
| Material | Stainless steel / Aluminium |
| Number of hooks | 2 |
| Arrangement of the hooks | 90° to each other |
| Type of height adjustment | Screw height adjustment |
| Maximum length/height | 790 mm |
| Minimum length/height | 540 mm |
| Total weight (net) | appr. 2 kgincl. drip vessel and glass holder |
| Wall holder | 2 pieces with 2 mounting holes each for flat head screw M6 (screws are not included in the delivery) |
| Inner tube | straight |
| Inner tube diameter | Ø 18 mm |
| Outer tube diameter | Ø 25 mm |
| Total load capacity (kg) | 4 |
| Load capacity per system (kg) | 4 |
| Load capacity per hook (kg) | 2 |
Packaging dimensions
| Packaging unit: Unit |
| Width Box1 | 0,14 m |
| Height Box1 | 0,09 m |
| Length Box1 | 0,60 m |
| Weight Box1 | 2,50 kg |
