Product highlights
Optimal illuminance
with dimming function
Touchless
Motion control
- brilliant, non-reflective illumination of the treatment level helps the examining doctor during diagnosis
- extended life time - maximum energy efficiency - minimal maintenance
- flexible use: at the right time, at the right place
- high life expectancy of the light source
- low maintenance effort
- protected interior cable management

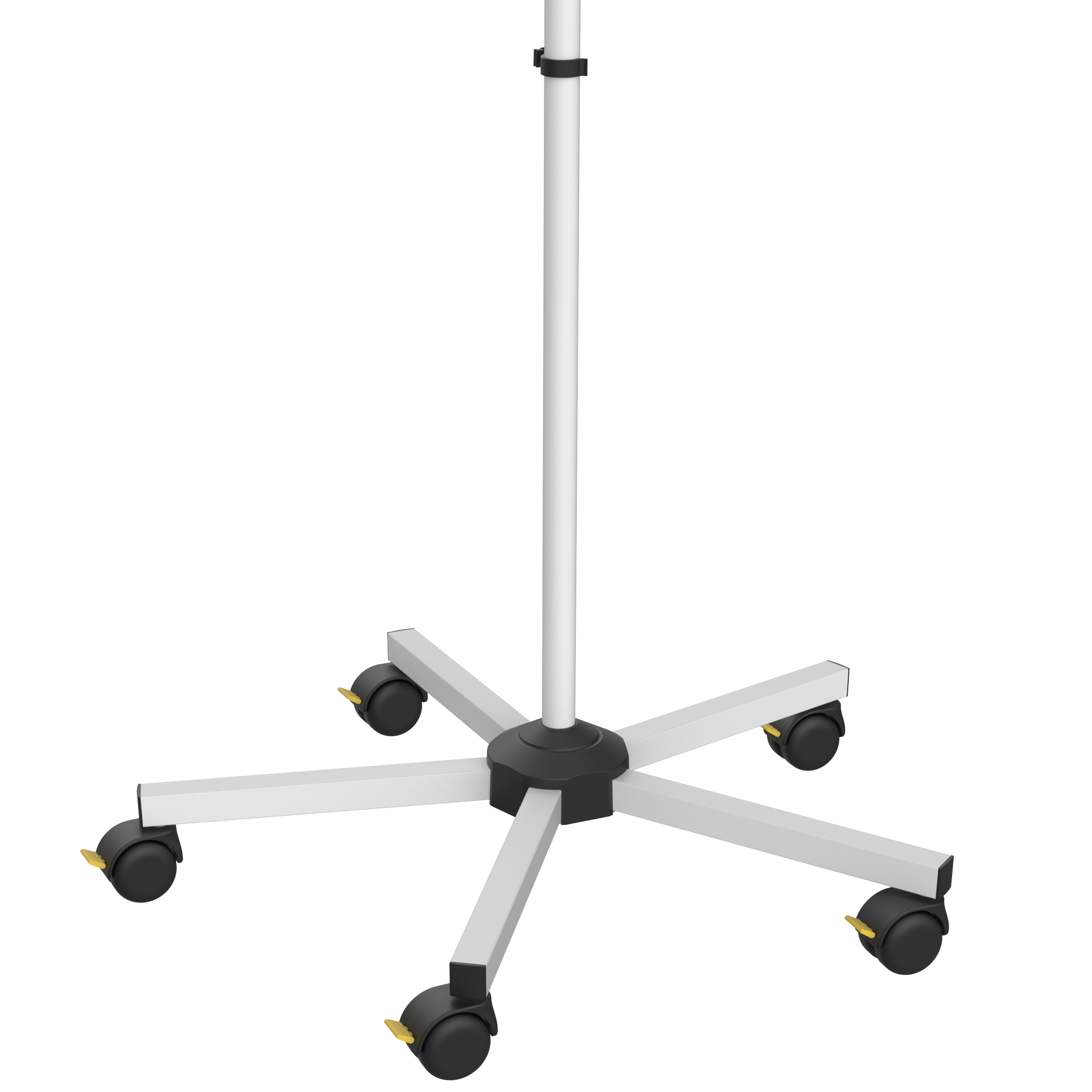

- The base legs are sealed with plastic plugs (no risk of injury)
- electrically conductive

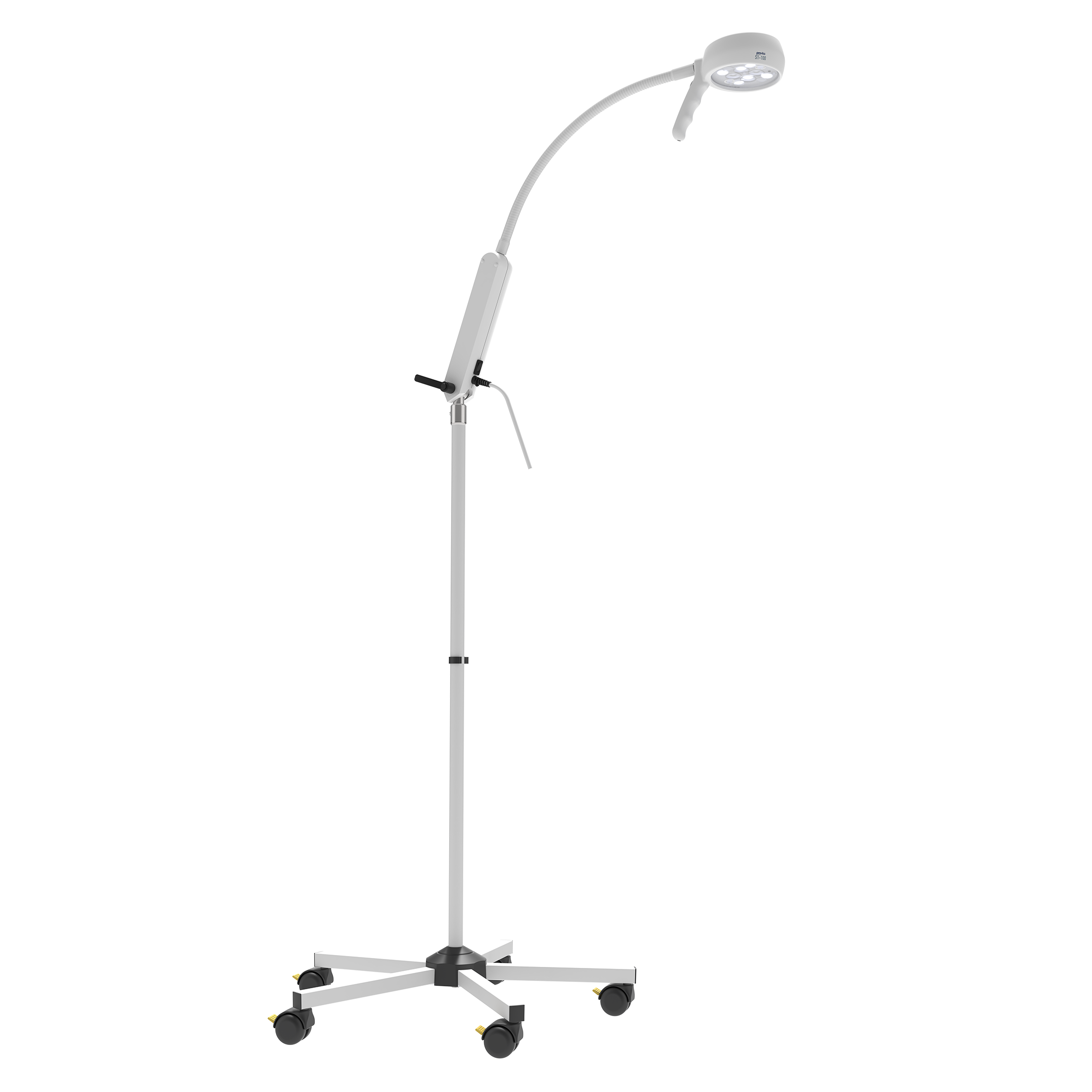

Series 1-100 - Mobile examination lamp
with gooseneck arm, on a fixed Height Stand| Product number: | L111111A |
| Types of arm: | Gooseneck arm |
| For attachement to : | Pole with roller base |
| Working radius: | 800 mm |
| Colour of lamp: | White |
| Joint pin: | Ø 18, L 35 mm |
| Light source: | LED, 9W |
| Light output: | > 70.000 lx / 500 mm; 20.000 lx / 1000 mm |
| Luminous flux (lm): | 550 lm |
| Light field diameter D10: | ~ 130 / 250 mm at 500 / 1.000 mm |
| Light colour: | ~ 4000 ± 200 K |
| Colour rendering index: | > Typ 90 Ra |
| Life expectancy: | > 50,000 h (light source) |
| Electrical mains: | 100 - 240 V, 50 - 60 Hz |
| Power switch: | Integrated in the transformer housing |
| Note: | Due to measurement and production given data may deviate by approx. -10% to + 20%. |
Packaging dimensions
| Packaging unit: Unit |
| Width Box1 | 0,2 m |
| Height Box1 | 0,33 m |
| Length Box1 | 1,2 m |
| Weight Box1 | 10,5 kg |
