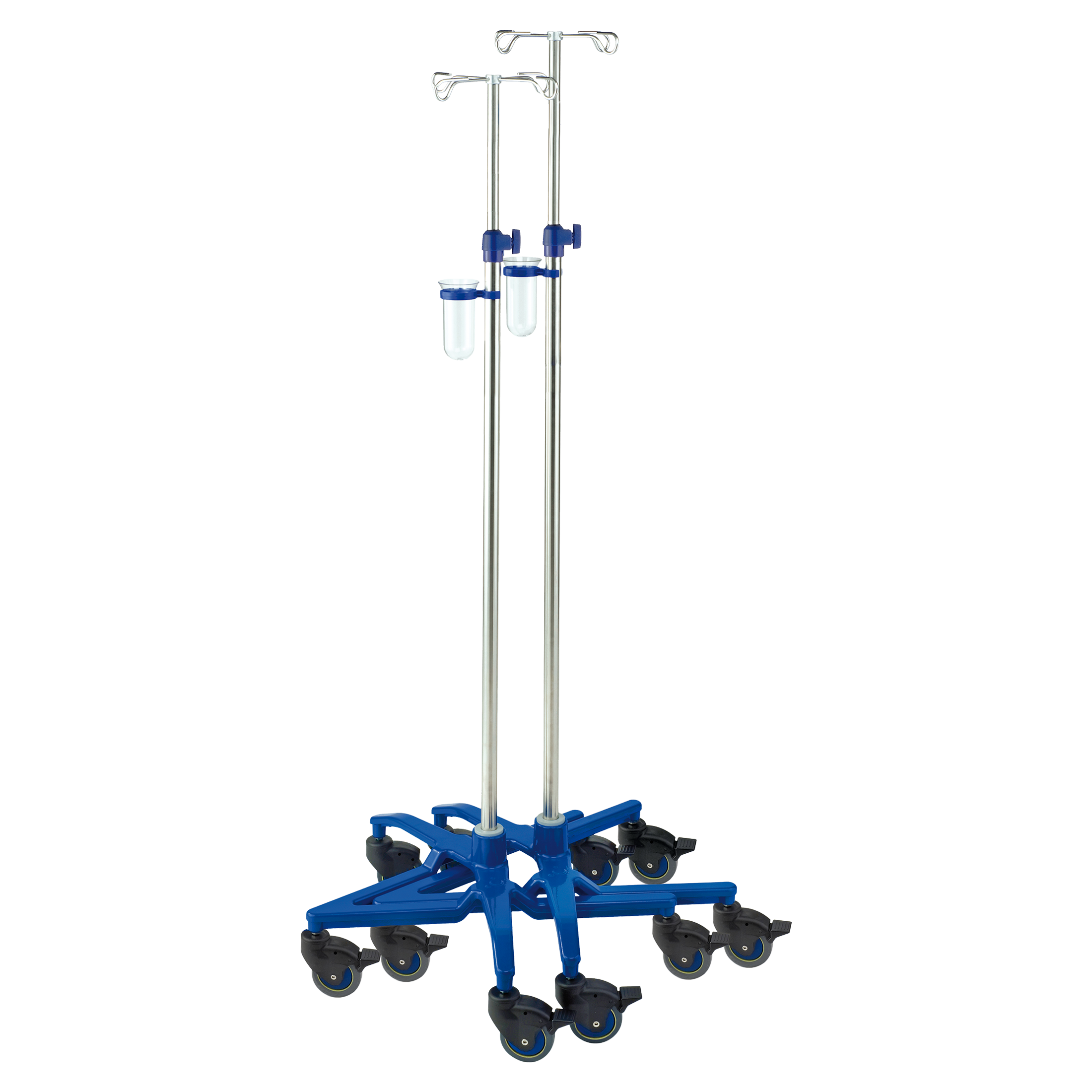

IV-Stand Eco-Space
Product highlights
- Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.
- Effective infusion care by securely hanging infusion bottles and bags
- Mobile and flexible application possibilities
- space-saving storage thanks to an intelligent base construction
- All plastic parts are lightfast
- The integrated pull-out limiter prevents the adjustable tubes from separating
- Safety bottle cross according to DIN ISO 15375
- great running characteristic through high value 80 mm Mono castors
- a sealing cap prevents the IV-pole from hygienical senstive liquids
- Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
- No risk of injury thanks to the rounded shape of the bottle hooks
- The geometry of the hooks prevents the infusion bottle from falling out
- comfortable height adjustment through a screw-height adjustment with an integrated, surface-gently mold clamping element
I-S42122
IV-Stand Eco-Space
Material: chromed steel / aluminium
Field of application
|
Normal Care |
| Material | Chromed steel |
| Material foot base | Aluminum, ultramarine blue |
| Colour of plastic parts | Blue |
|
Bottle Holder
|
Stainless steel bottle cross for screwing in |
| Number of hooks | 4 |
| Arrangement of the hooks | 90° to each other |
| Type of height adjustment | Screw height adjustment |
| Maximum length/height | 2.130 mm |
| Minimum length/height | 1.300 mm |
| Inner tube diameter | Ø 18 mm |
| Outer tube diameter | Ø 25 mm |
| Length of outer tube | 1.000 mm |
|
Castors
|
Mono castors |
| Castor diameter | Ø 75 mm |
| Number of castors | 5; 2 with brakes and elect. conductivity |
| Storage | Space-saving stackable |
| Space-saving | 39% |
| Drip vessel sterilizable | Yes |
| Total load capacity (kg) | 9.5 |
| Load capacity per system (kg) | 6 |
| Load capacity per hook (kg) | 2 |
Packaging dimensions
| Packaging unit: Unit |
| Width Box1 | 0,59 m |
| Height Box1 | 0,25 m |
| Length Box1 | 0,64 m |
| Weight Box1 | 2,80 kg |
| Width Box2 | 0,20 m |
| Height Box2 | 0,10 m |
| Length Box2 | 1,18 m |
| Weight Box2 | 1,75 kg |
